Improve Coil Feeding Efficiency & Safety

Electromagnetic, Fixed or Adjustable, Single or Multiple Lanes to engage Coil Tail and to be used for Blanking Operations

As Presses and Coil Steel evolve, so does the feed line’s ability to control the material from the Uncoiler / Stock Reel to the Die. Presses are multifunctional; in some cases with transfer systems, stacking tables, and robots for blanking operations as well as Coil Feeding and Coil Feeding Equipment. Material has also evolved from Mild Steel to AHSS, and Gen 3. Both the press and the material can present challenges for the Feed Line.

The Coil Tail is not only valuable material that needs to be processed, but also needs to be controlled so it does not become either a safety issue or potentially an equipment concern by not tracking into the Die (potentially damaging a Die or the Press). With ever increasing Mpa values, the coil material even after straightening, needs to be controlled into the Die space.

Colt’s Electromagnetic Tail-out Micro Feeder

Recipe Driven Lane Expansion & Retraction | Passline Height Adjustment | Horizontal Lane Adjustment | Flow Rail Material Engagement

• Extendable and adjustable material control tables, and supports at the exit of the feeder

• Servo Driven Tail out material supports with Upper Trap Rolls

• Servo controlled Electromagnetic Tail-out Feeders to process blanks

Colt manufactures a variety of Shears, including: Squaring Shears, Chop Shears and Production Shears suitable for all material widths, thicknesses and strengths.

Multiple configurations are available depending on your environment.

To be more efficient, instead of outsourcing blank production, add a Cut-To-Length and Blank Stacker to your existing Feed Line or consider a stand-alone solution. Make your own blanks of any size or shape.

Colt has responded to customer requirements by offering a number of Coil Tail Technologies including:

Colt Automation, automated pinch roll tailout Feeder for metal coils. Solid, quality construction for steel part manufacturers.
Pinch Roll Tail-out Feeder by Colt Automation
Colt Automation threading table and straightener for steel coil processing
CERF 60-48: Flow Rail Strip Support Pneumatic Raise/Lower
Colt Lubricator on automated steel Feeder, threading table
Colt Flow Rail Strip Support Pneumatic Raise/Lower with
Synchronized Lubricator
Colt Automation, automated Feeder for metal coils. Solid, quality construction for steel part manufacturers.
Colt Strip Support Pneumatic Raise/Lower
with Upper Trap Assembly
microfeeder by Colt Automation for steel coil processing AHSS, Gen 3, HSLA, High Strength Steel, Class A, Aluminum, Mild Steel, Cold-rolled metal coil, hot-rolled steel coil, alloy steel, galvanized
Colt Electro Magnetic Micro Feeder w/ Telescopic,
Passline Height Adjustable, Lane width Adjustment,
Hard Stop
Colt Automation, automated Feeder for metal coils. Solid, quality construction for steel part manufacturers.
Colt Telescopic Pneumatic Strip Support
Colt Automation Feeder connecting to a press line for steel auto parts. Manual telescoping.

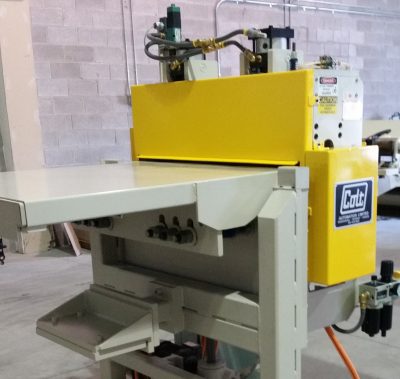

Colt Telescopic Manual Strip Support
Colt Shear with Partial Feed Line
Colt manufactures: Squaring Shears, Chop Shears & Production Shears
