Uncoilers

The Finest Press Feeding & Coil Handling Equipment since 1965

Light-Duty Reels/Uncoilers Up To 1500lbs

Uncoiler – COLT’s Light-Duty Coil Reels up to 1500 lb. capacity are designed and precision built for strength and durability. All models are available with an adjustable drag brake or motorized with optional loop sensing for speed control.

Single model CSC & CMSC

Single model CSC & CMSC

Double CDSC & CDM Uncoiler by Colt Automation for steel coil processing

Double CDSC & CDM

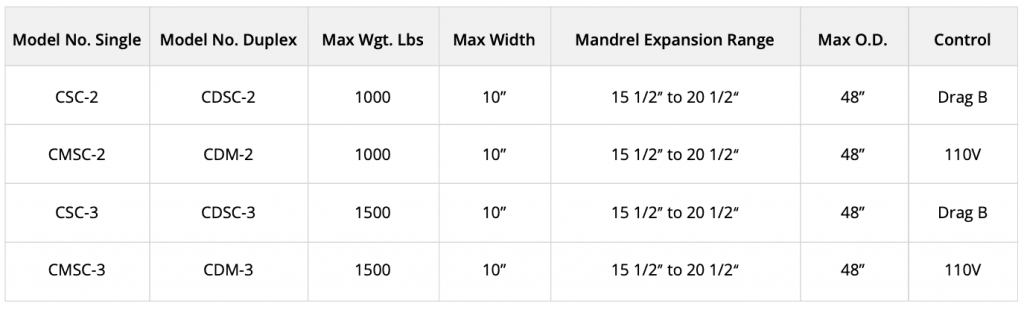

Model No. Single

Model No. Duplex

Max Wgt. Lbs

Max Width

Mandrel Expansion Range

Max O.D.

Control

CSC-2

CDSC-2

1000

10”

15 1/2” to 20 1/2“

48”

Drag B

CMSC-2

CDM-2

1000

10”

15 1/2” to 20 1/2“

48”

110V

CSC-3

CDSC-3

1500

10”

15 1/2” to 20 1/2“

48”

Drag B

CMSC-3

CDM-3

1500

10”

15 1/2” to 20 1/2“

48”

110V

Medium-Duty Reels/Uncoilers 2500lbs to 6000lbs

COLT Medium-Duty Reel Uncoilers are designed to handle coils to a maximum weight of 6000 Ibs, a diameter of 60″ (optional 72″ O.D.) and a width of 36″. Rugged construction, non-powered with Air Brakes or powered with a variable speed D.C. drive ensure long equipment life. Controlled acceleration and deceleration removes all shock and impact in the drive train normally associated with intermittent motion. Automatic loop control assures that material is fed from the coil at precisely the speed required to maintain a regular flow through the entire line.

Single model CR Uncoiler by Colt Automation for steel coil processing

Single model CR

Double model CRD

Double model CRD

Model No. Single

Model No. Duplex

Max Wgt. Lbs

Max Wgt. Kg

Min Width

Max Width

CR

CRD

2500

1130

6”/150mm

36”/915mm

CR

CRD

2500

1130

6”/150mm

36”/915mm

CR 25

CRD 25

2500

1130

6”/150mm

36”/915mm

CR 40

CRD 40

4000

1815

6”/150mm

36”/915mm

CR 60

CRD 60

6000

2720

6”/150mm

36”/915mm

Heavy-Duty Reels/Uncoilers 8,000lbs To 60,000lbs

COLT Heavy-Duty Single Mandrel Reel Uncoilers are designed to handle coils to a maximum weight of up to 60,000 Ibs, a diameter of 72″ O.D. and a width of up to 84″. Rugged construction and options for powered or non-powered with air braking options ensure long equipment life. The controlled acceleration and deceleration removes all shock and impact in the drive train normally associated with intermittent motion. Automatic loop control assures that material is fed from the coil at precisely the speed required to maintain a regular flow through the entire line.

Single model CHDR

Single model CHDR

Double CHDRD. Double uncoiler unit - Colt Automation for steel coil processing AHSS, Gen 3, HSLA, High Strength Steel, Class A, Aluminum, Mild Steel, Cold-rolled metal coil, hot-rolled steel coil, alloy steel, galvanized

Double CHDRD

Minimum Width

12″

300mm

Maximum Width

84″

2133mm

Minimum Weight

8,000lbs

3630kg

Maximum Weight

60 000lbs

27215kg

Other Unique Uncoilers

COLT Heavy-Duty Single Mandrel Reel Uncoilers are designed to handle coils to a maximum weight of up to 60,000 Ibs, a diameter of 72″ O.D. and a width of up to 84″. Rugged construction and options for powered or non-powered with air braking options ensure long equipment life. The controlled acceleration and deceleration removes all shock and impact in the drive train normally associated with intermittent motion. Automatic loop control assures that material is fed from the coil at precisely the speed required to maintain a regular flow through the entire line.

COLT Extra Heavy Duty Double Mandrel Uncoiler to 80,000lbs

COLT Extra Heavy-Duty Double Mandrel Uncoiler to 80,000lbs

Minimum Width

6″

150mm

Maximum Width

84″

1930mm

Maximum Weight

80 000lbs

36290kg

COLT Automation can provide many optional features to fully automate the entire feed process.
