POWERED STRAIGHTENERS

Rugged, Future-Ready Feed Line Equipment built for Infinite Life

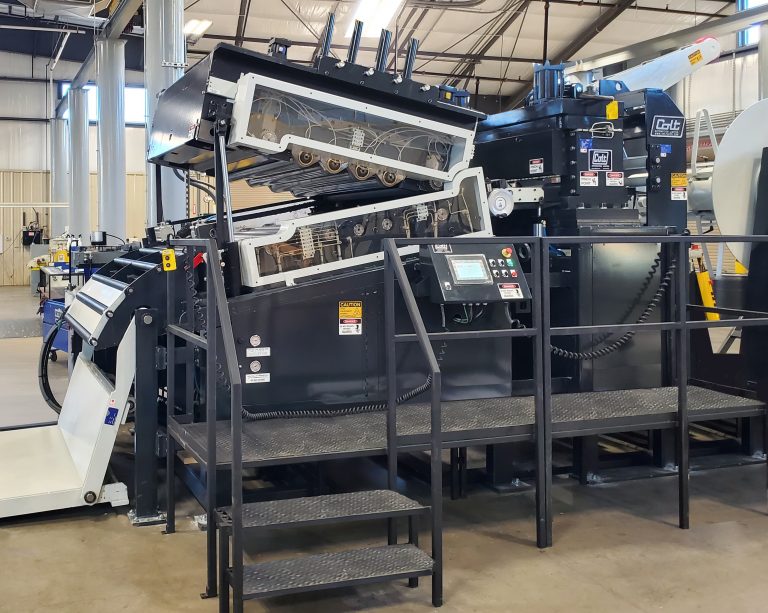

Powered Straighteners for steel Coil Processing

Colt Automation manufactures light-duty, medium-duty, heavy-duty and extra heavy-duty Straighteners processing steel coils in a range of sizes from 6” to 84” wide and roll diameters from 2” to 8”. All of Colt’s Straighteners share common elements:

• Solid Frame construction

• Heavy-Duty Entry Guides with 2″ Self Centering Acme Threaded Rod

• 52100 Aviation Bearing Quality Roll Material for Straightener & Pinch Rolls (Rockwell 60/64)

• Large Roll journals with full outboard roll support

• Entry and Exit Pinch Rolls

• Counterbalanced Pinch Roll design (Weightless Pinch Roll settings) allowing very thin Material (.020”) and exotic marking sensitive material processing (aluminum, perforated, coated, painted)

• Bauer Straightener Motors (expected life to 40 yrs)

• Backup roll support from single to quadruple Backup rolls in order to limit deflection when running narrow or AHSS material

• Bearing quality zero back lash gears with hardened teeth

• Optional satin or chrome flash finish coating

• Catenary support

• Material detection sensors

• Absolute encoders at each Straightener Roll

• Fully Automated as desired

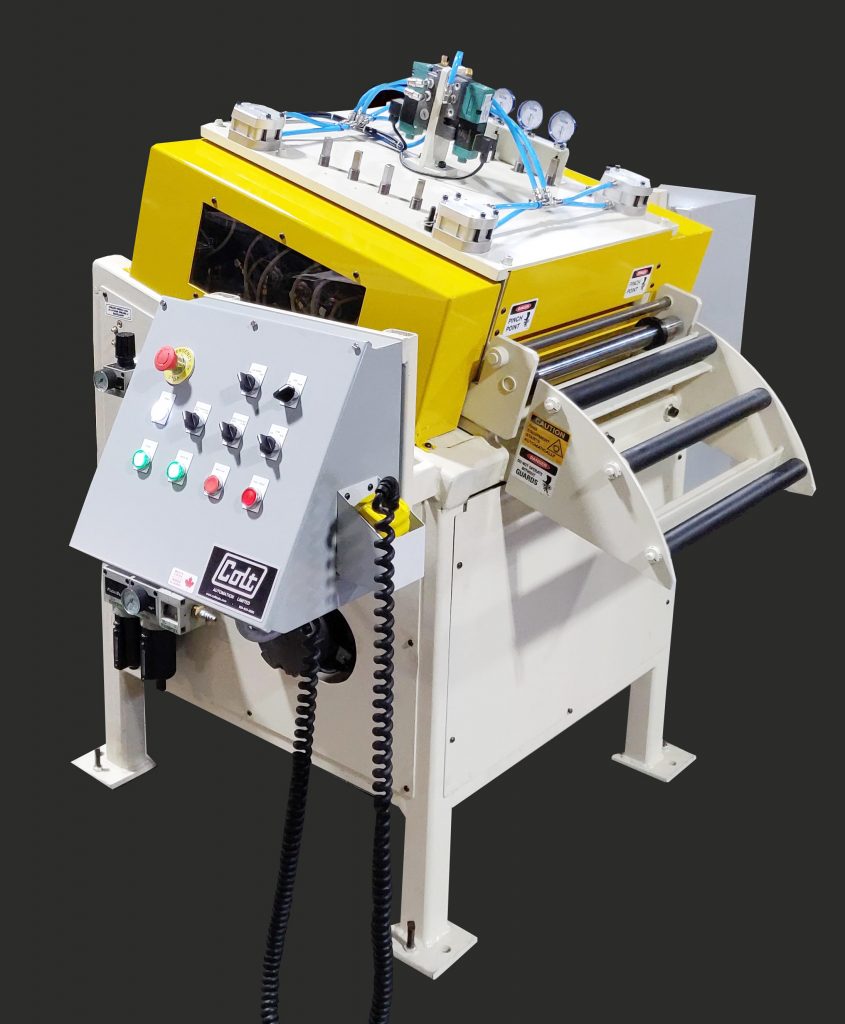

Light-Duty Powered Straighteners

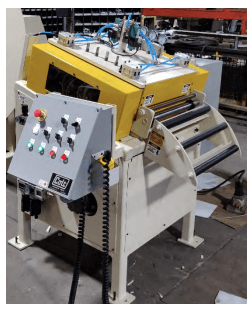

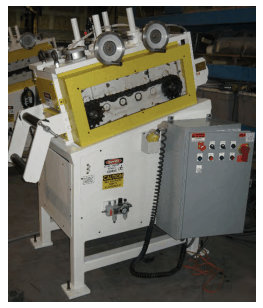

Light duty powered straightener

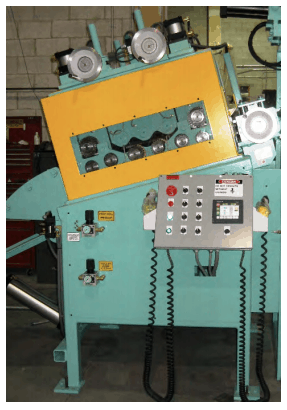

Light duty powered straightener

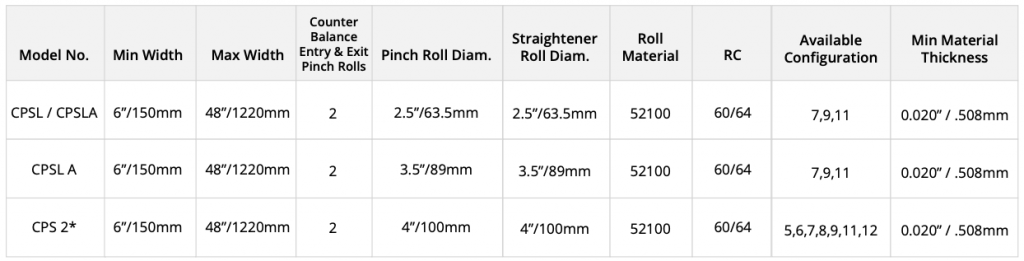

Model No.

Min Width

Max Width

Counter Balance Entry & Exit Pinch Rolls

Pinch Roll Diam.

Straightener Roll Diam.

Roll Material

RC

Available Configuration

Min Material Thickness

CPSL / CPSLA

6”/150mm

48”/1220mm

2

2.5”/63.5mm

2.5”/63.5mm

52100

60/64

7,9,11,13

0.020” / .508mm

CPSL A

6”/150mm

48”/1220mm

2

3.5”/89mm

3.5”/89mm

52100

60/64

7,9,11,13

0.020” / .508mm

CPS 2*

6”/150mm

48”/1220mm

2

4”/100mm

4”/100mm

52100

60/64

5,6,7,8,9,11,12

0.020” / .508mm

Medium-Duty Powered Straighteners

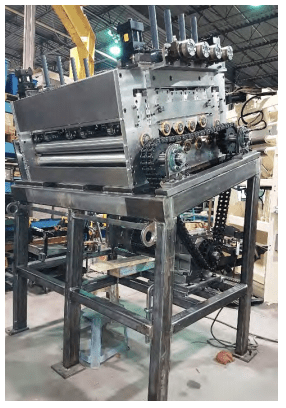

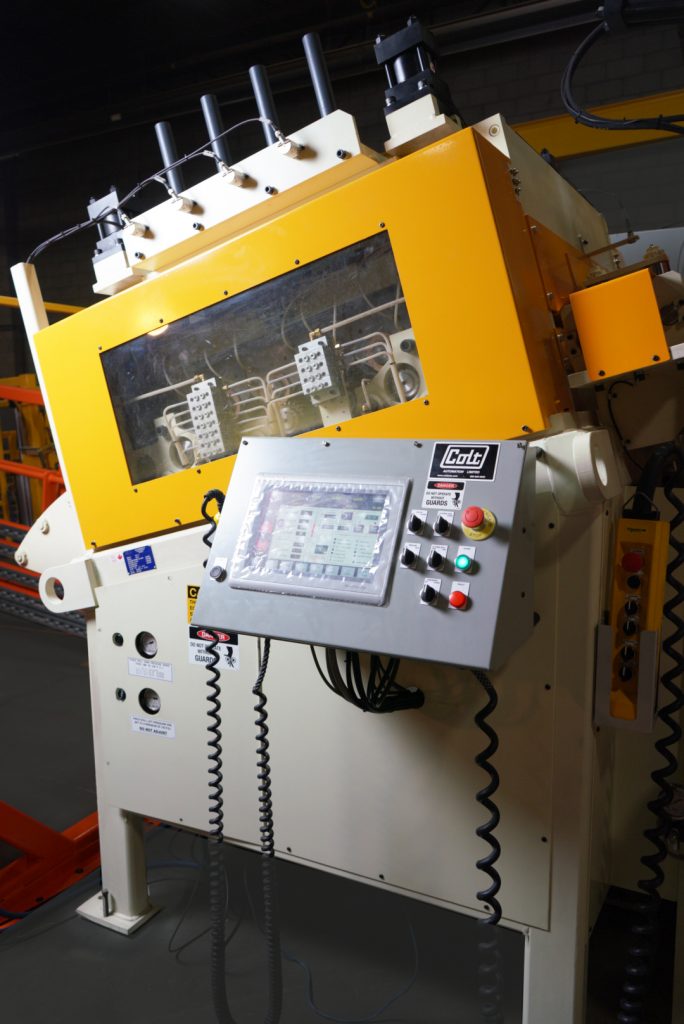

Medium-Duty Powered Straightener
Medium-Duty Powered Straightener

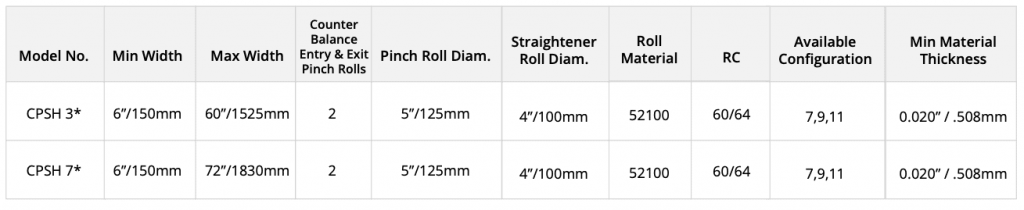

Model No.

Min Width

Max Width

Counter Balance Entry & Exit Pinch Rolls

Pinch Roll Diam.

Straightener Roll Diam.

Roll Material

RC

Available Configuration

Min Material Thickness

CPSH 3*

6”/150mm

60”/1525mm

2

5”/125mm

4”/100mm

52100

60/64

7,9,11,13

0.020” / .508mm

CPSH 7*

6”/150mm

72”/1830mm

2

5”/125mm

4”/100mm

52100

60/64

7,9,11

0.020” / .508mm

Heavy-Duty Powered Straighteners

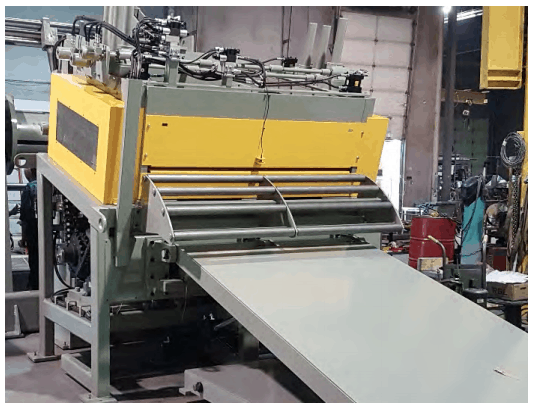

Heavy-Duty Powered Straightener
Heavy-Duty Powered Straightener

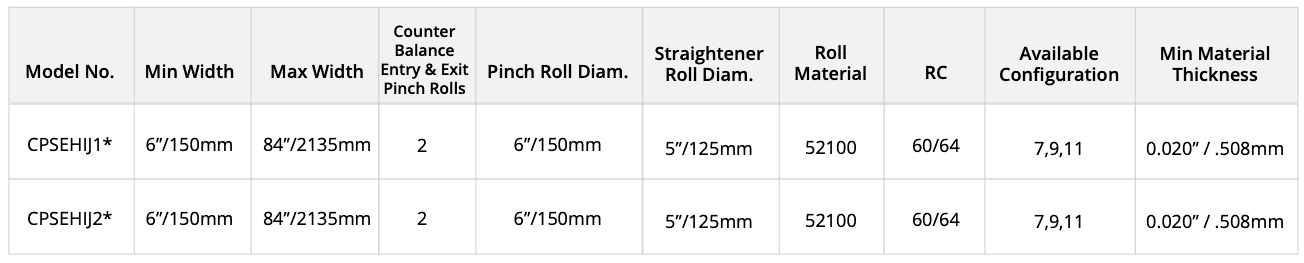

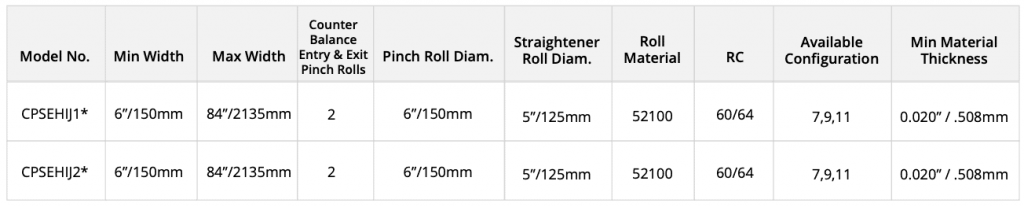

Model No.

Min Width

Max Width

Counter Balance Entry & Exit Pinch Rolls

Pinch Roll Diam.

Straightener Roll Diam.

Roll Material

RC

Available Configuration

Min Material Thickness

CPSEHIJ1*

6”/150mm

84”/2135mm

2

6”/150mm

5”/125mm

52100

60/64

7,9,11

0.020” / .508mm

CPSEHIJ2*

6”/150mm

84”/2135mm

2

6”/150mm

5”/125mm

52100

60/64

7,9,11

0.020” / .508mm

Extra Heavy-Duty Powered Straighteners

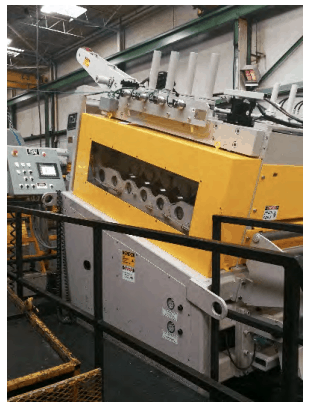

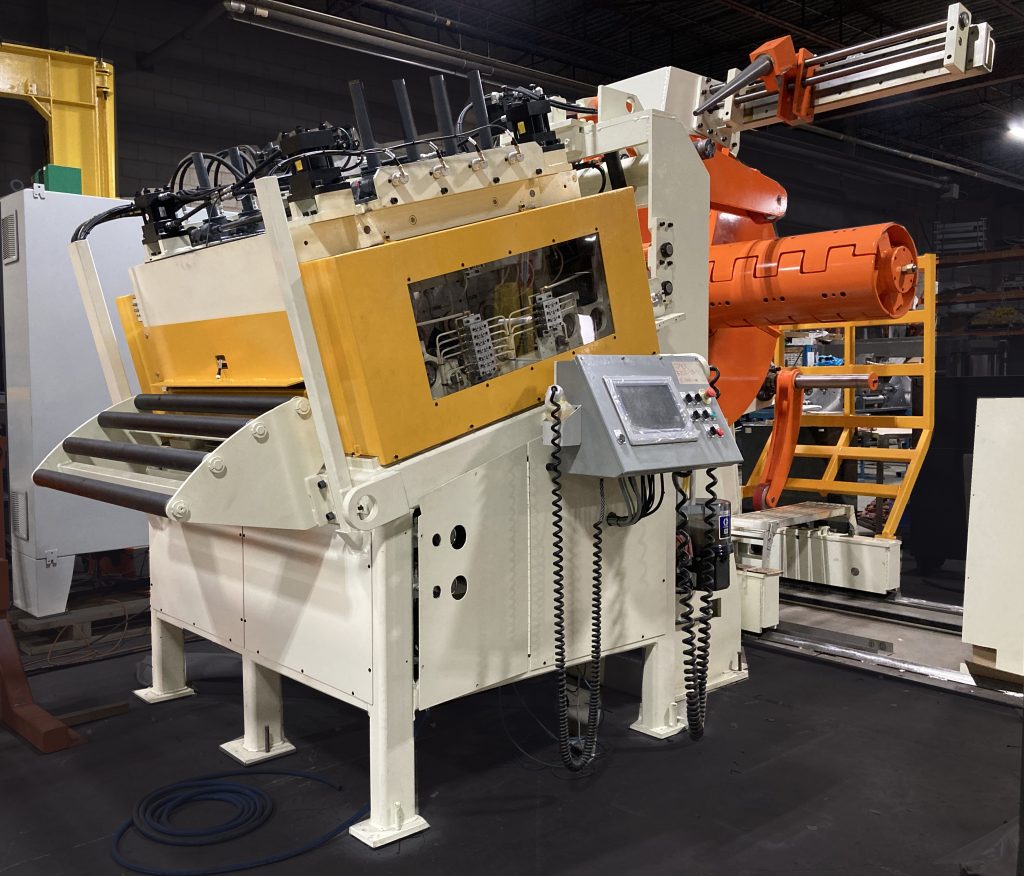

Extra Heavy-Duty Powered Straightener
CPSEHIJ3* Triple Actuators/AHSS

Model No.

Min Width

Max Width

Counter Balance Entry & Exit Pinch Rolls

Pinch Roll Diam.

Straightener Roll Diam.

Roll Material

RC

Available Configuration

Min Material Thickness

CPSEHIJ3

6”/150mm

84”/2135mm

2

6”/150mm

5”/125mm

52100

60/64

7,9,11

0.020” / .508mm

*AHSS version to over 1200Mpa High Strength Steel Side Plates, Wider harder Gear Faces, Multiple Back Up Rolls for deflection protection

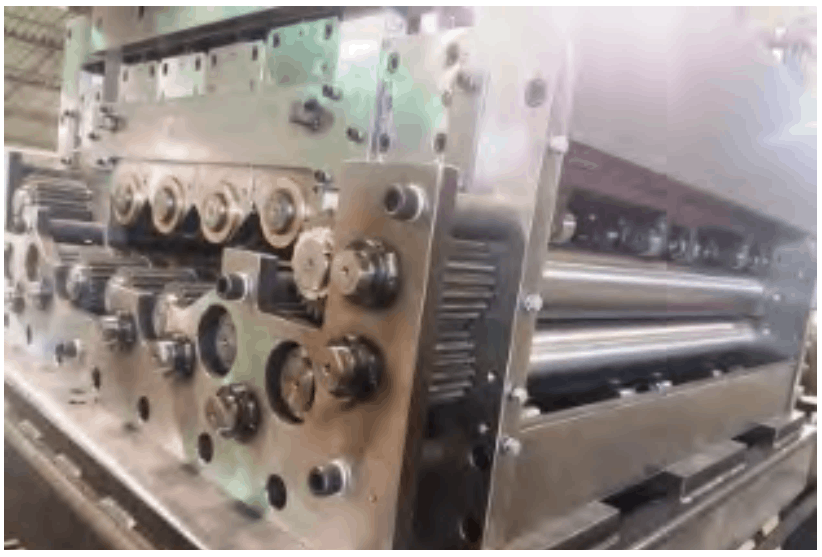

Which Outboard Roll Support is Better for Your AHSS Straightener

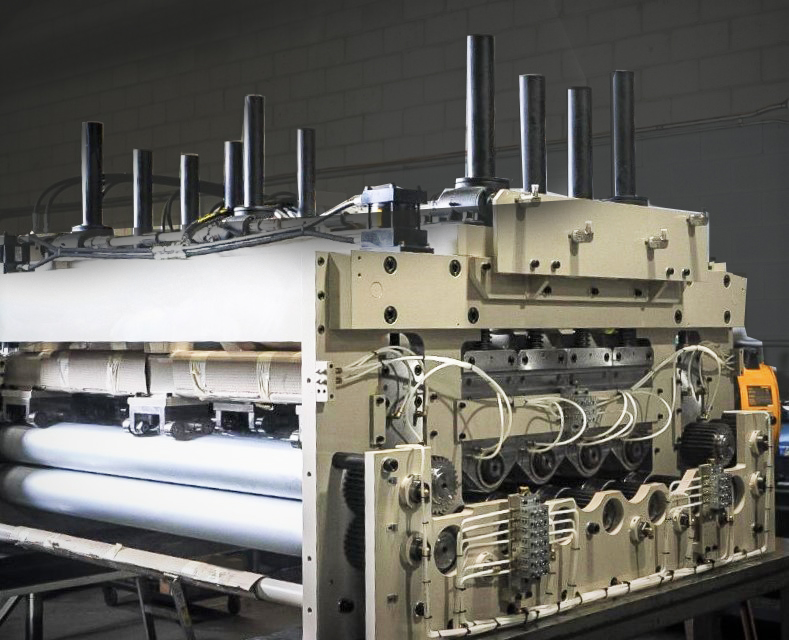

AHSS Straightener
COLT full outboard support

EVERY COLT STRAIGHTENER IS BUILT TO EXACTING STANDARDS
COLT only uses 52100 Aviation Grade Alloy for Straightener Roll Construction. Once ground and polished, COLT Straightener Rolls meet or exceed RC 60/64…the Hardest Rolls Manufactured!

ALWAYS INNOVATING
Using the latest Variable Frequency Drives with Ethernet /IP interface. When integrated with a laser loop sensor, your Colt Straightener and Uncoiler will run at constant speed, matching the throughput of the Feeder eliminating the start/stop motion. This will reduce wear and tear and increase service life of drive components.

COLT STRAIGHTENERS BRING EUROPEAN QUALITY AT NORTH AMERICAN VALUE
Colt has always built the toughest equipment available, capable of processing High Strength Steel. As the composition of steel including: AHSS | HSLA | Dual Phase has evolved, so has Colt Straighteners. Our engineering science & calculations build in generous service factors. This ensures limited, if any roll deformation or deflection when processing the toughest strength steels, resulting in less wear and downtime.

STRAIGHTENER quality manufacturing includes wider side plates, full outboard support, larger roll journals, bigger drive gears and stronger drive trains. We machine all transitions with large radius to limit metal fatigue and reduce possible shear points.

Pinch Rolls are Flash chromed with #3 matte finish for maximum traction. Combined with larger journals, hardened gears and in some cases, dual drive, double redundant drive chains extend equipment uptime and life cycle.

BENEFITS & OPTIONS OF COLT STRAIGHTENERS
• Stronger construction means less downtime
• Optional configurations 7,8,9,11,13 or more roll
options to better suit your needs
• Wide range of equipment to process .020 to
over .600
• AHSS | Dual Phase | Cold Rolled



COLT Automation can provide many optional features to fully automate the entire feed process.
